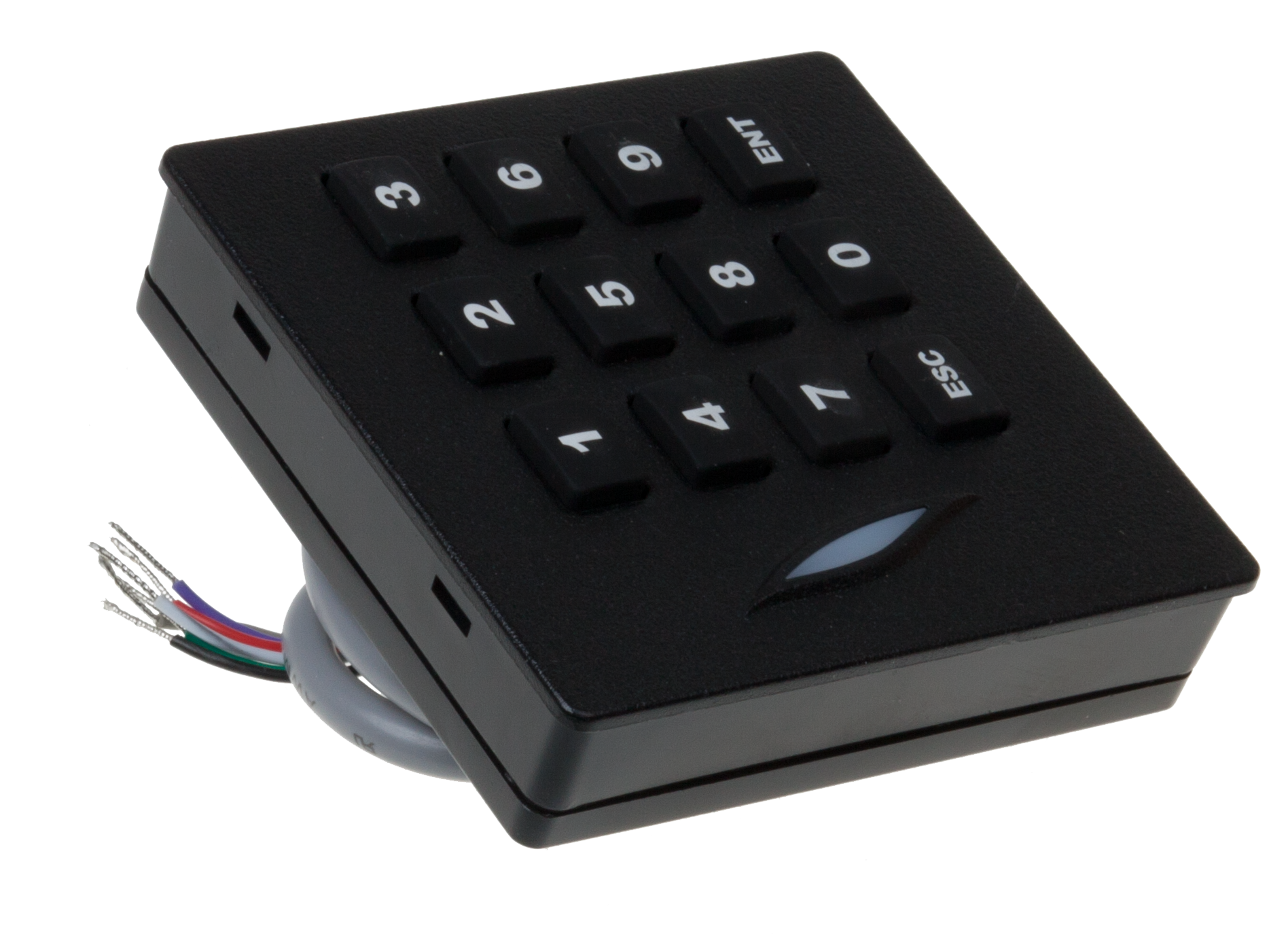

HWg-R3

RFID reader in standard EM4100 (125kHz) with keyboard and interface of Wiegand.
Accessories producer:
Sebury
Tested withFirmwareResult
1.0.10 and later
OK

Connection

RJ45 norm B color Funkction HWg-R3
white/orange 1 - out 1 gray
orange 2 - out 2 purple
x 3 – Txd x
blue 4 – GND black
x 5 - in 1 x
green 6 - D0/Rxd green
white/brown 7 - +12V red
brown 8 - D1 white
