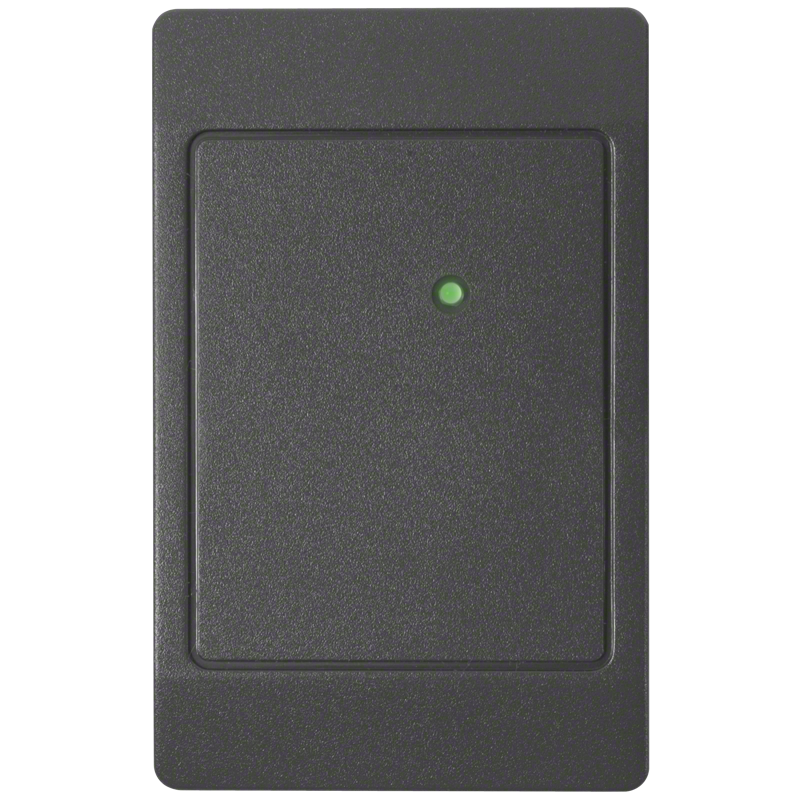

HID® Proximity ThinLine II

Providing performance and reliability, HID's attractive, unobtrusive ThinLine II® proximity card reader is housed in a two-piece, weatherproof secure potted enclosure.
Accessories producer:
Southco
Tested withFirmwareResult
1.0.10 and later
OK

Connection

RJ45 norm B color Funkction ThinLine® II
white/orange 1 - out 1 orange
orange 2 - out 2 yellow
x 3 – Txd x
blue 4 – GND black
x 5 - in 1 x
green 6 - D0/Rxd green
white/brown 7 - +12V red
brown 8 - D1 white
