H3-EM-67 (H3-EM-68)

Card Reader Type - HID® iCLASS, MIFARE® Classic, MIFARE® Plus, MIFARE® DESFire, HID 125kHz, EM 125kHz
Accessories producer:
Southco
Tested withFirmwareResult
1.2.2 and later
OK

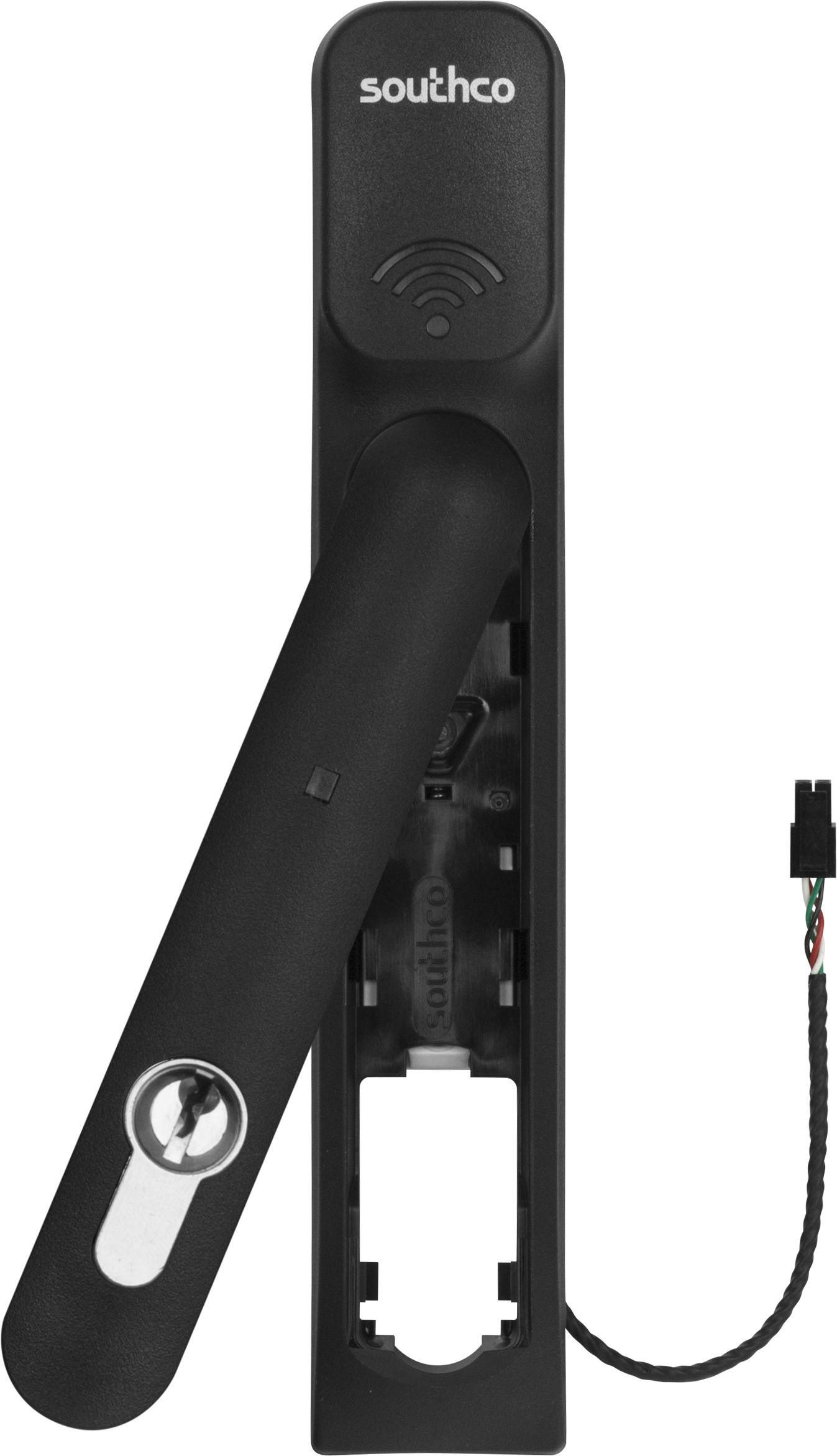

  • H3-EM-67 = Swing Handle 13.56MHz RFID
  • H3-EM-68 = Swing Handle 125KHz RFID

Connecting of RFID

Pinout of handle

1 Power GND
2 Power +12V
3 Not used
4 Control Signal
5 Lock status
6 Mech status

Connections of handle

HWg-SH4x Lock
GND Door Contact
IN1 Door Contact
GND
IN2 Lock status
GND
IN3 Mech status
NC
COM Connect to +U
NO Control Signal
GND Power GND
+U Power +12V
