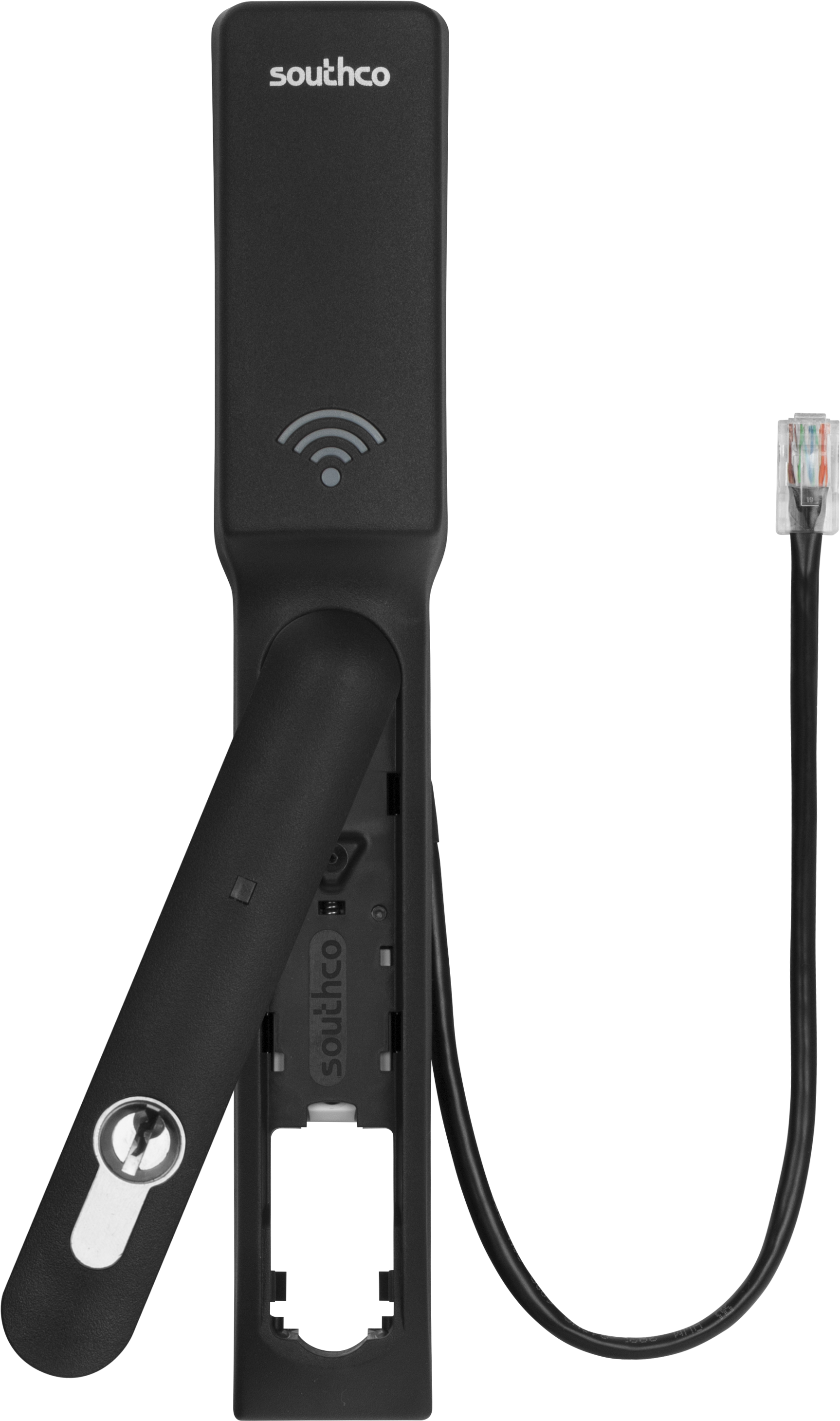

Card Reader Type - HID® iCLASS, MIFARE® Classic, MIFARE® Plus, MIFARE® DESFire, HID 125kHz, EM 125kHz
Accessories producer:
Southco
Product page:
| Tested with | Firmware | Result |
|---|---|---|
1.2.2 and later | OK
|
Connecting
Pinout of handle
|
 |
Connections of handle
| HWg-SH4x | Lock |
|---|---|
| GND | Door Contact |
| IN1 | Door Contact |
| GND | |
| IN2 | Lock status |
| GND | |
| IN3 | Mech status |
| NC | |
| COM | Connect to +U |
| NO | Control Signal |
| GND | Power GND |
| +U | Power +12V |
