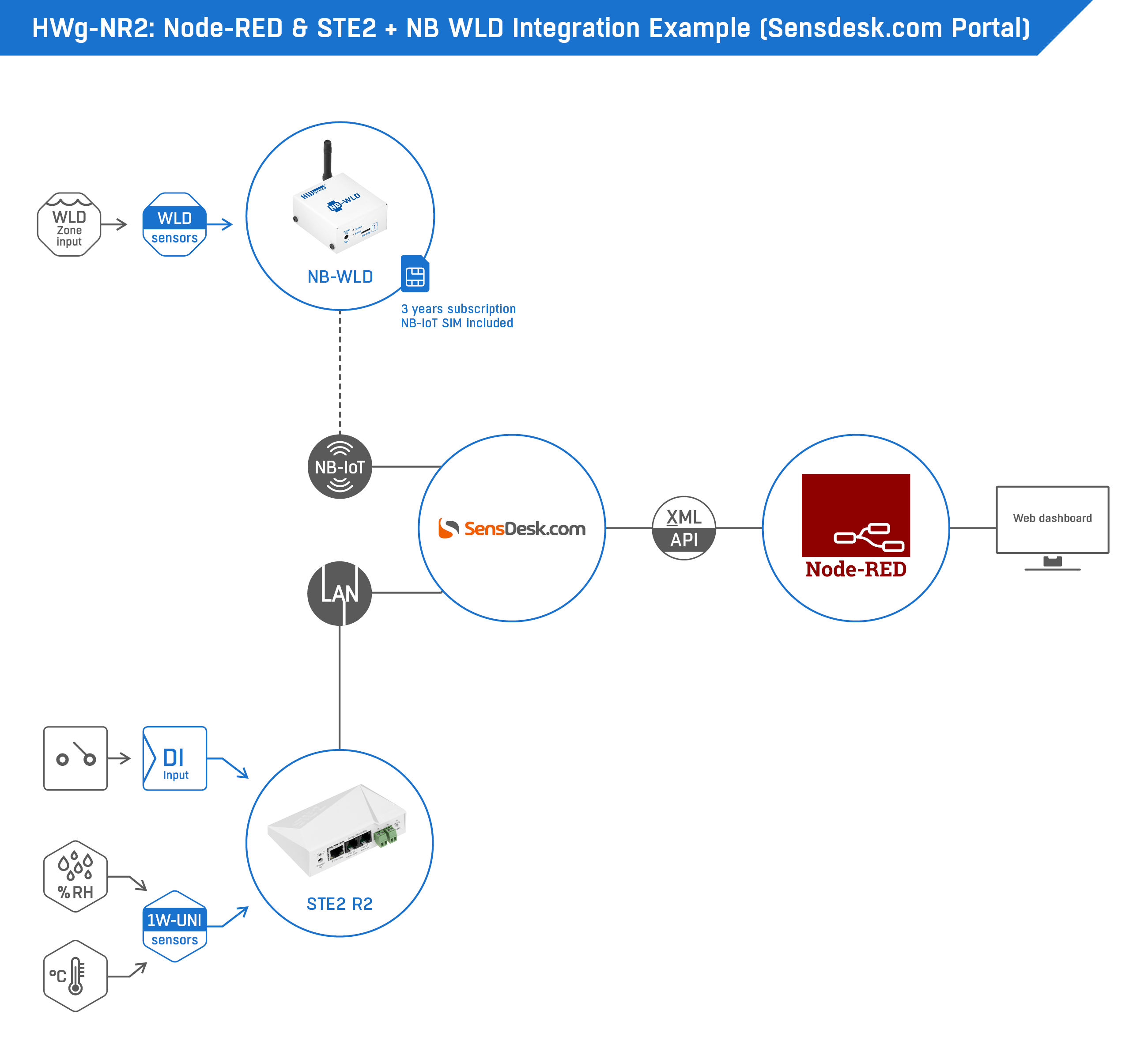

HWg-NR2: Node-RED & STE2 + NB WLD Integration Example (Sensdesk.com Portal)

What is Node-RED

Node-RED is a low-code development tool for visual programming that is flow-based and designed to wire together hardware devices, APIs and online services.

It provides a web browser-based flow editor to create JavaScript functions and allows users to save or share individual elements of their applications. The runtime of Node-RED is built on Node.js and the flows are stored using JSON. It can run locally, on a Raspberry Pi, or on Android, in the cloud, and on various other platforms (For further information, visit: https://nodered.org).

The HWg-NR2 Node-RED Project

• Fetches data from the Sensdesk.com portal;
• Uses HTTP and XML API for communication;
• Uses Node-RED;
• Outputs the data via a web dashboard;
• Dashboard can display 4, user-selected sensors or digital inputs;
• You can add additional sensors or digital inputs to the dashboard manually;
• The project is compatible with PC, Raspberry Pi, and cloud platforms.

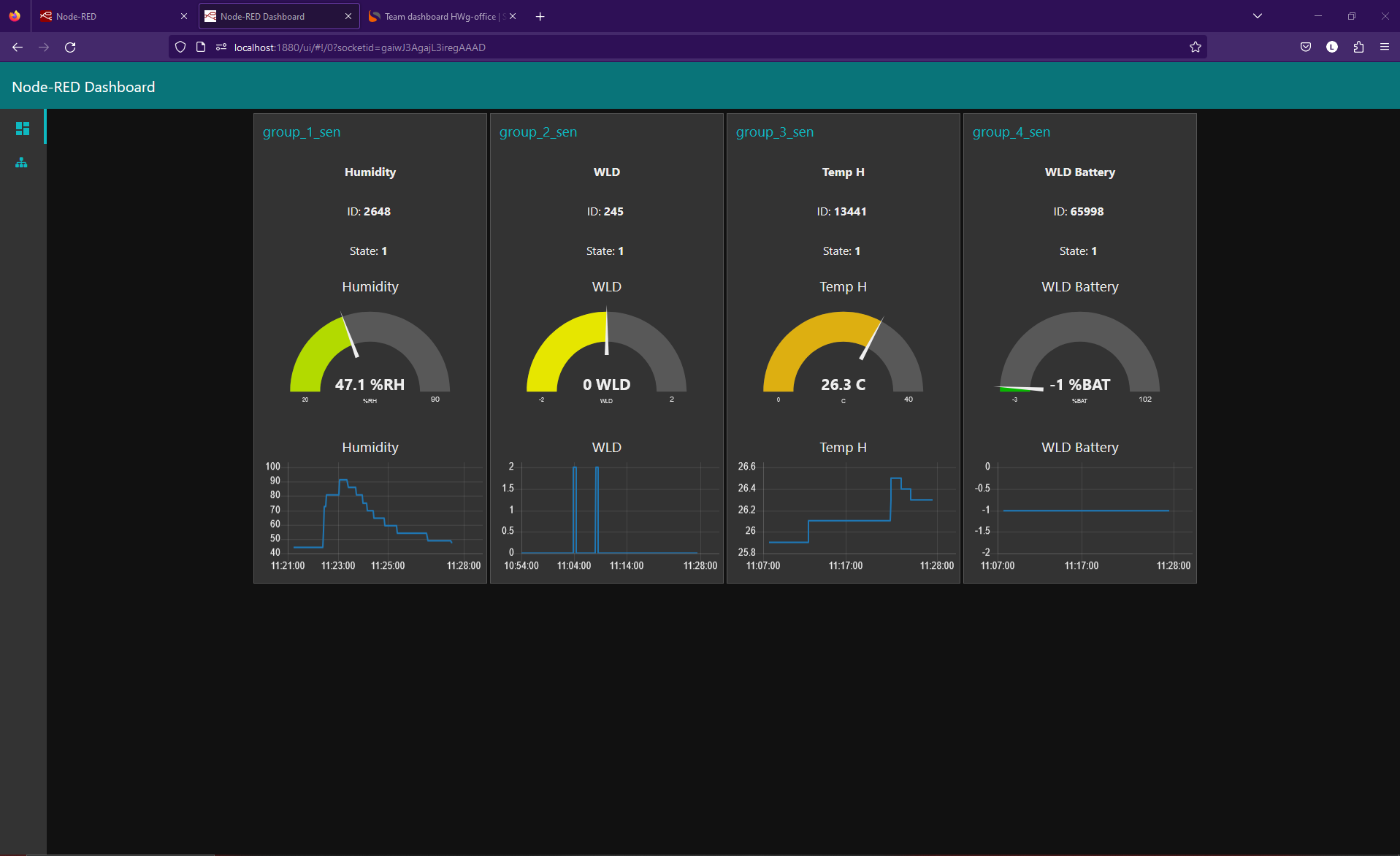

HWg-NR2 Dashboard

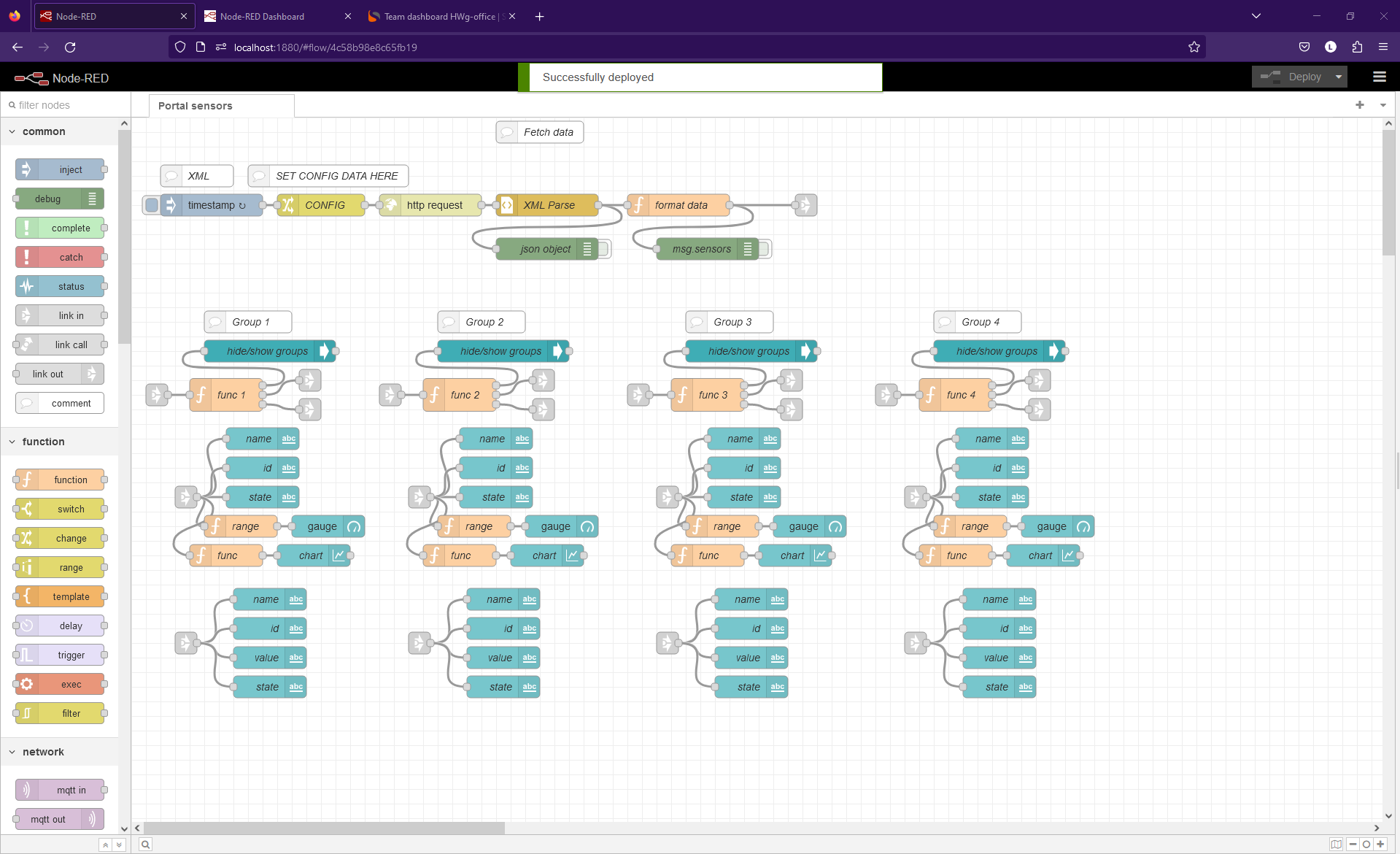

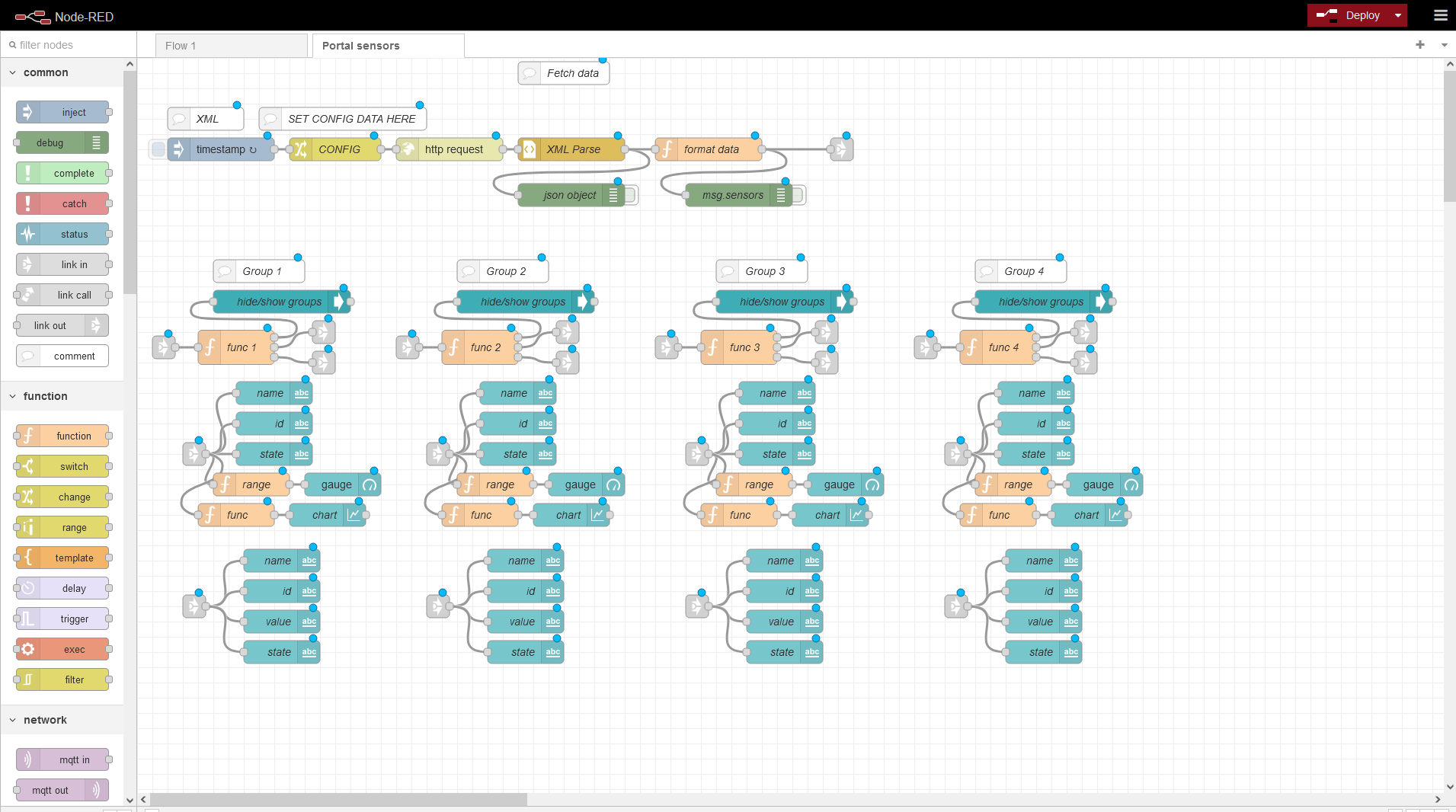

HWg-NR2 Node-RED Flow

Simple Deployment

To utilize the HWg-NR2 example, first you need to download and install Node-RED module. You can refer to https://nodered.org/docs/getting-started/ for more information.

Once you have Node-RED running in the browser, click the hamburger menu in the top right corner, go to “import”, paste in the (don’t forget to change file extension from .txt to .json) JSON of the HWg-NR1 example, which you can find here: https://www.hw-group.com/files/support/10809-hwg-nr2-node-red-ste2-nb-wld-integration-example-sensdeskcom-portal/portalprojectsrc.txt and click “Import”.

New nodes should now appear.

Before deploying the project, you must configure various parameters in the CONFIG node. Locate the node and double-click to display the UI on the right side of your screen with multiple options.

Change the value of the msg.url to either your team or user link in your Sensdesk account’s values.xml tab.

The 4 following options (g1_id, g2_id etc.) correspond to the 4 groups in the UI. Each value represents the ID of the sensor which will be displayed in that group. Adjust the values of these 4 options and click “Done” in the top-right corner (the IDs correspond to the Sensdesk ID of the sensors/digital input!).

Click “Deploy” in the top right corner and press Ctrl + Shift + D to go to the dashboard. You should see something like this:

Detailed Walkthrough

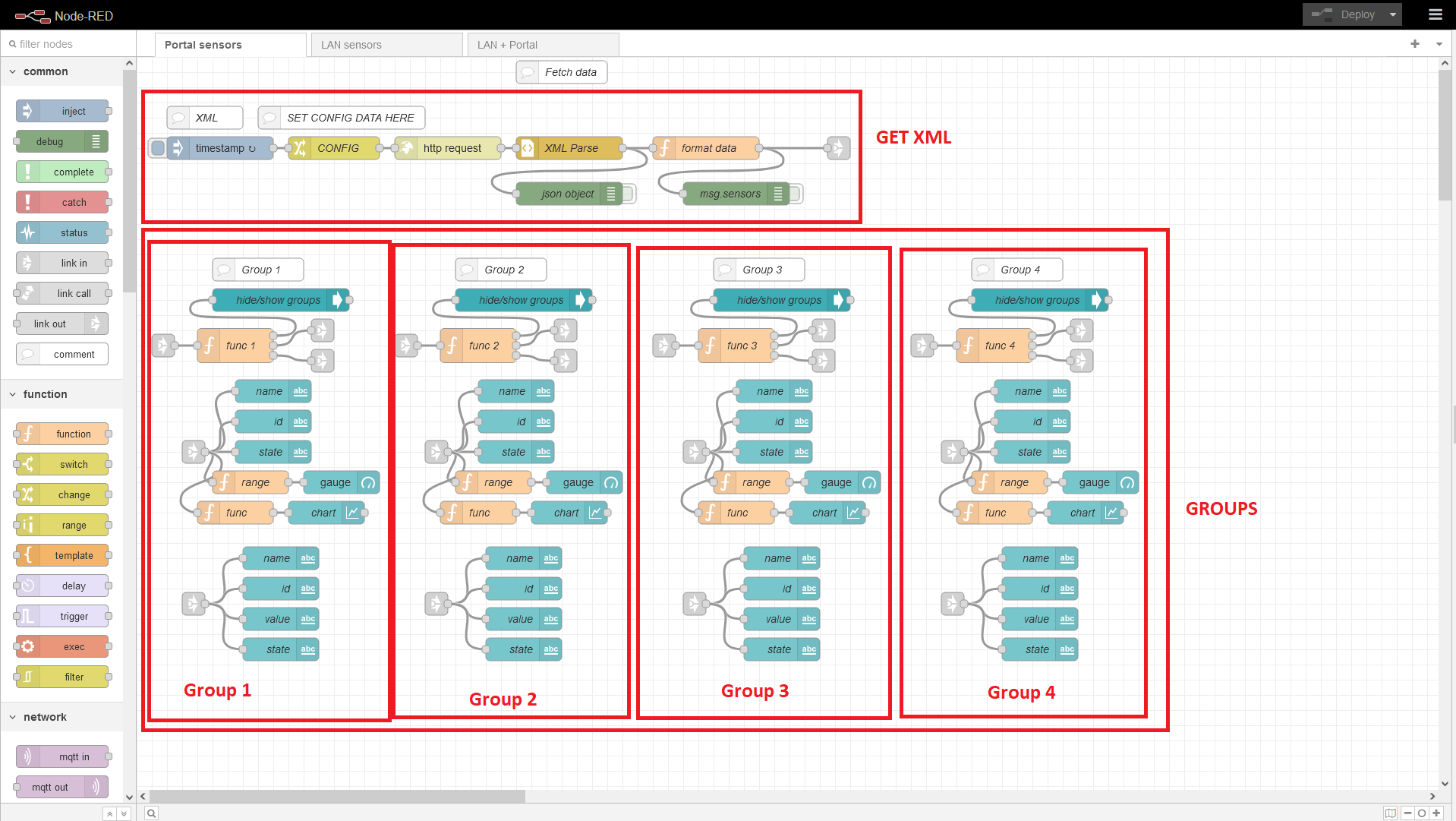

The flow is split 2 sections: GET XML, and GROUPS (which is then further split into: Group 1, Group 2, Group 3, and Group 4).

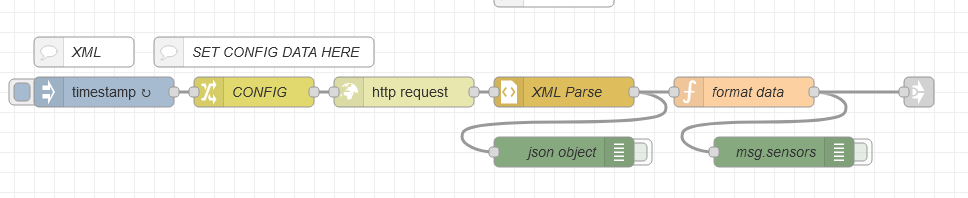

Section 1: Get XML

This part fetches the XML file, converts it to a JSON object and passes it to the four Group sections.

The Inject Node

Starts the flow every 2 minutes (in this context, a flow is a series of connected nodes).



The Change Node (“CONFIG”)

Sets the ms.url and saves the sensor IDs that should be in each group. The data is saved to the ‘flow’ scope (the tab in this context), meaning it can be accessed anywhere in this flow (by any node in this tab). The user inputs this data.



Http Request Node

Fetches the XML from the Sensdesk portal. The url is fetched from the msg.url property automatically.



XML Parse Node

Converts the XML string to a JSON Object.



Function Node (“format data”)

Creates an array (msg.sensors) of the sensors and digital inputs. Each sensors/digital input is a JavaScript object with properties including the name, ID, and state.



Link Out Node

Sends out the msg object to the groups. Link nodes function as a sort of tunnel. The msg object is sent out from the Link Out node and is received by the Link In node. It is used to make the flow more readable.

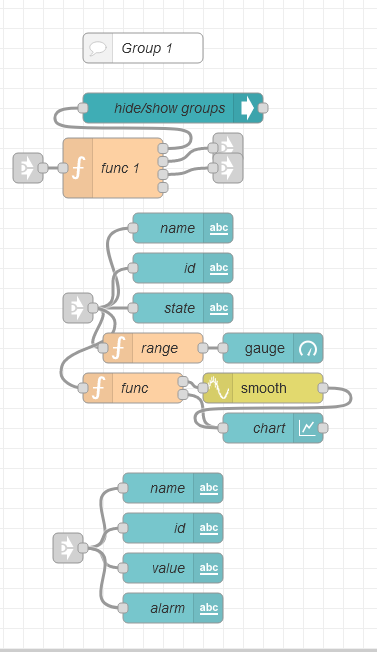

Section 2: Groups

Link In Node

Get the msg object from the Link Out node.



Function Node (“func 1”)

Grabs the data for the correct sensor/di (in respect to the ID specified in the CONFIG node) and checks if the value is reasonable.

If the value is above -100, a copy is made and saved to flow.g1_dat and relevant information gets parsed into individual sensor/di properties (e.g., sensor.name).

If the value is below -100 (indicating a disconnected sensor) the input (msg.sensors) is ignored and data is loaded from flow.g1_dat until the sensor is found again or the ID is changed in the CONFIG node.


The node has 3 outputs: msg, sensor, and di.



Msg output & UI Control Node (“hide/show groups”)

The node is responsible for hiding/showing either the sensor or di group (group_1_sen or group_1_di).



Sensor output

Connects to the individual UI elements through a pair of link nodes (these elements are only visible if the group ID corresponds to a sensor).



Text Node (“name”, “id”, etc.)

Displays text in the dashboard. In this example the name, ID, and the state of the sensor.



Function Node (“Range”)

Parses the min, max, value, and name properties for the Gauge node connected to it.



Gauge Node

The gauge displays the current value of the sensor in the dashboard.



Function Node (“func”)

Resets the following Chart node by sending an empty array as the value if the ID has been changed (checked for in the “func 1”).



Chart Node

Displays a chart of the value in the dashboard. The time span is 1 week but it can be changed in the chart settings menu (long time spans are not recommended due to the risk of the RAM overload).



Smooth Node

Creates of the mathematical average (mean) of the past 2 values (can be changed). This ensures reliability of the application.



Di output & Text Node

Displays text in the dashboard. In this example the name, ID, and the value (0 or 1) of the digital input and the alarm state (0 or 1).



Notes and Disclaimers

Gauge min & max

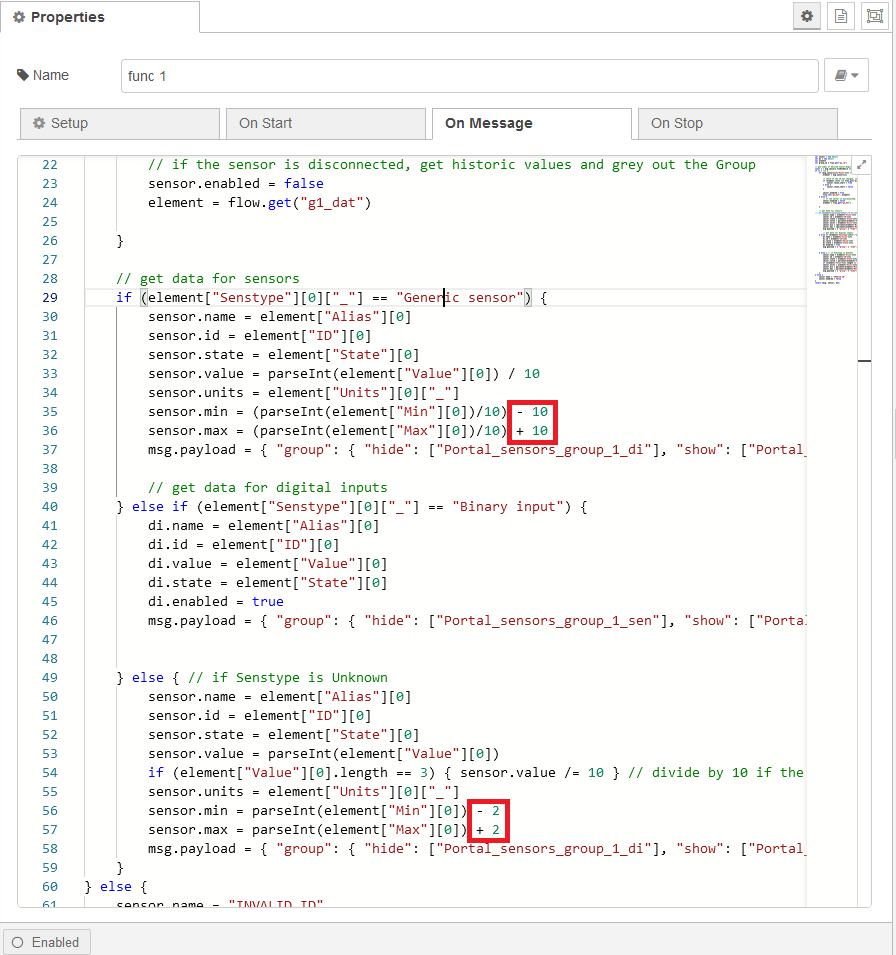

The values for the gauges in the UI are calculated from the Safe Range values with an extension of 10 or 2, meaning that if the Low Safe Range is 30 the min. for the gauge is going to be 20. This can be changed in the functions of individual groups.

Adding a new Group to the dashboard

Adding a new group to the dashboard may be challenging and time-consuming but it is still achievable.

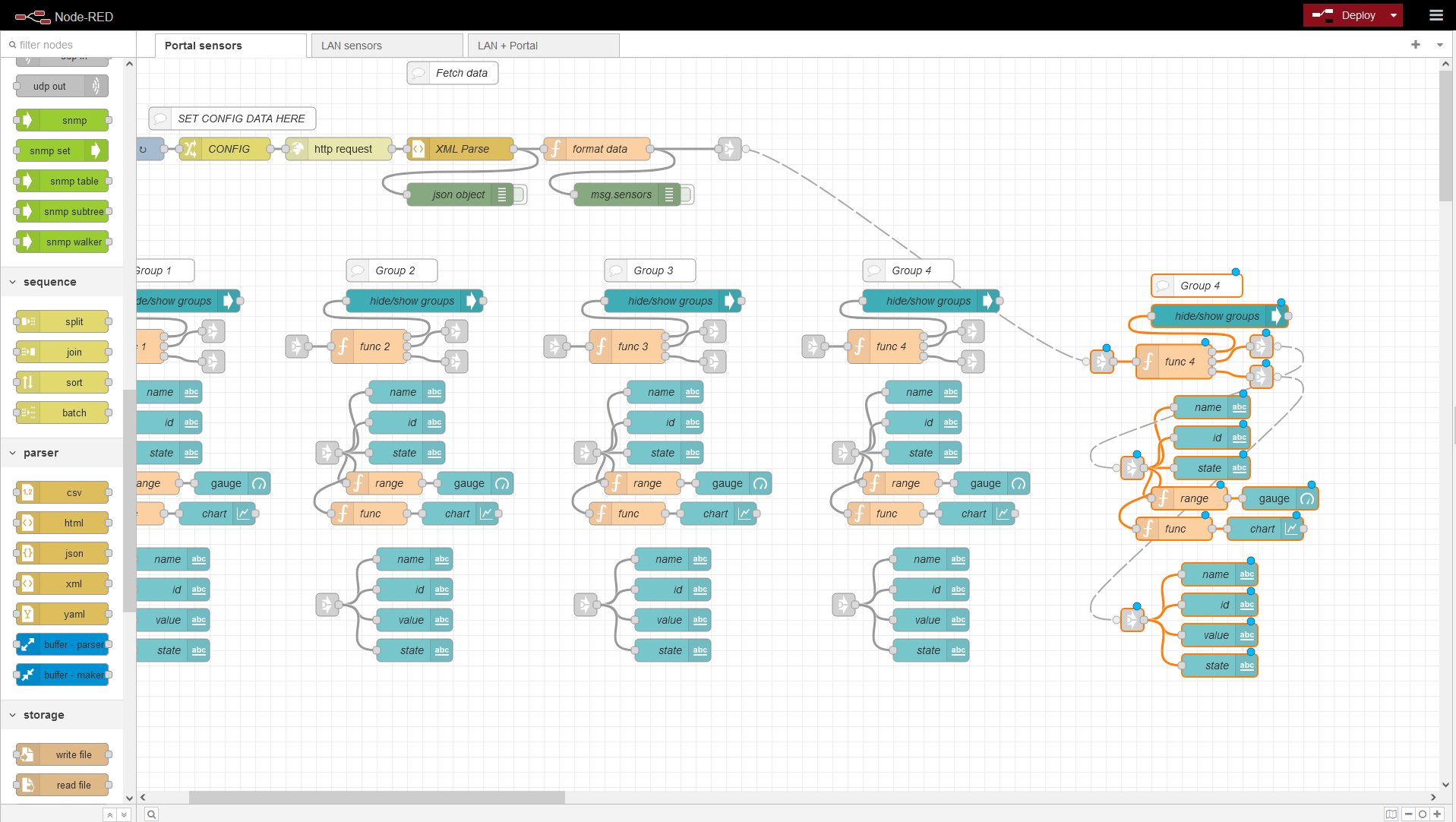

1) Copy-paste one of the groups;

2) To keep things clean, change the number in the comment and the function (e.g., func 5);

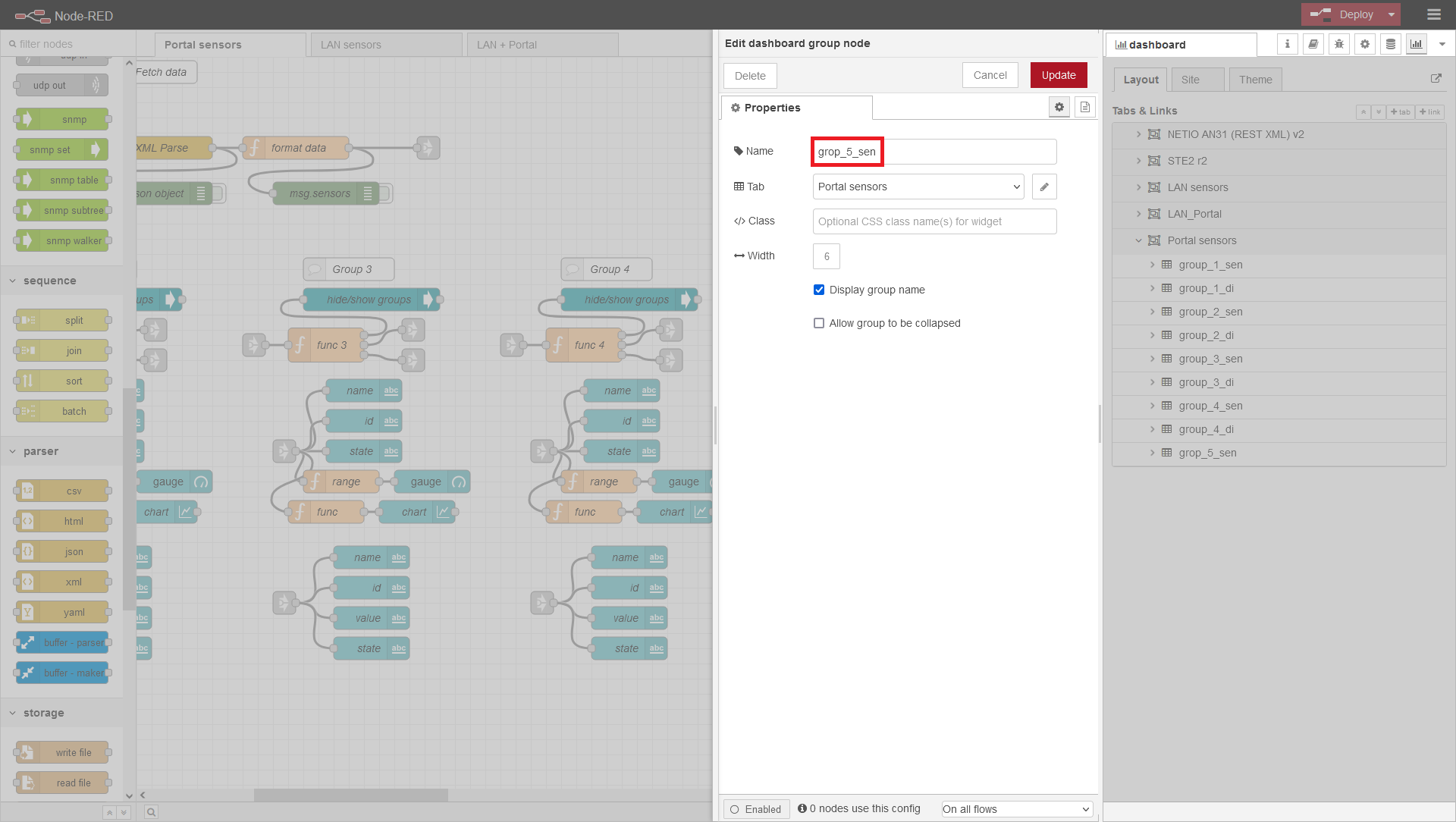

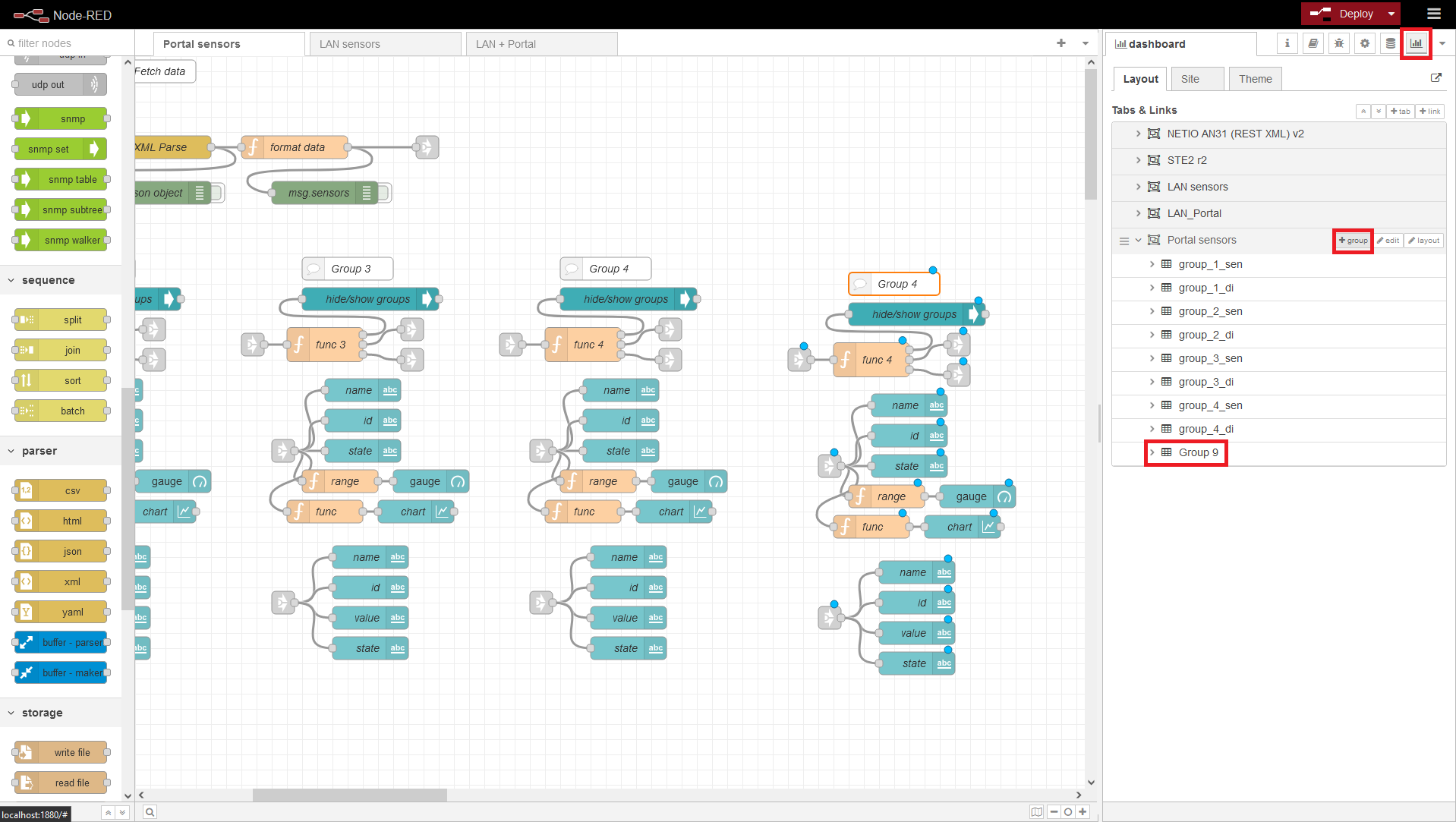

3) In the sidebar, navigate dashboard tab and then to the LAN Sensors tab and create 2 new groups. Click ‘edit’ and change their names to group_5_sen and group_5_di (or the corresponding number);

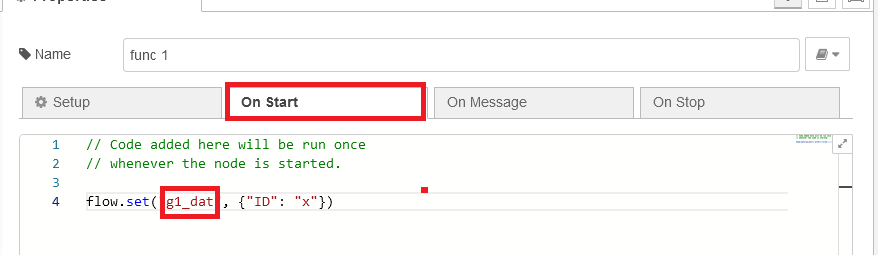

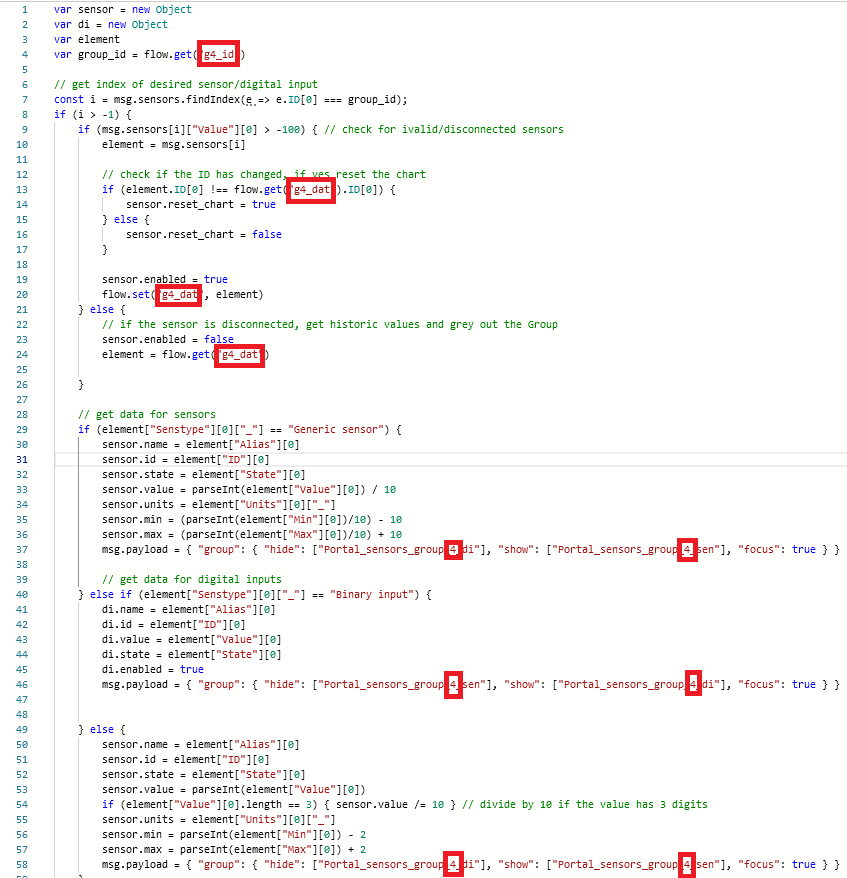

4) In the “func n” node, change all of the following numbers to the relevant one (if you are creating a fifth group all the numbers should be changed to a 5);

5) Now the tedious part, go through all the UI nodes in the new group and change the dashboard group to the either of the two you have just created (keep in mind that there is a group for the sensors – G5_sen and a group for the digital inputs – G5_di);

6) Congratulations, you have just created a new Group for the dashboard.

Resize Groups

You can change the width of the groups to fit to a smaller/larger display, individually in their edit UI.

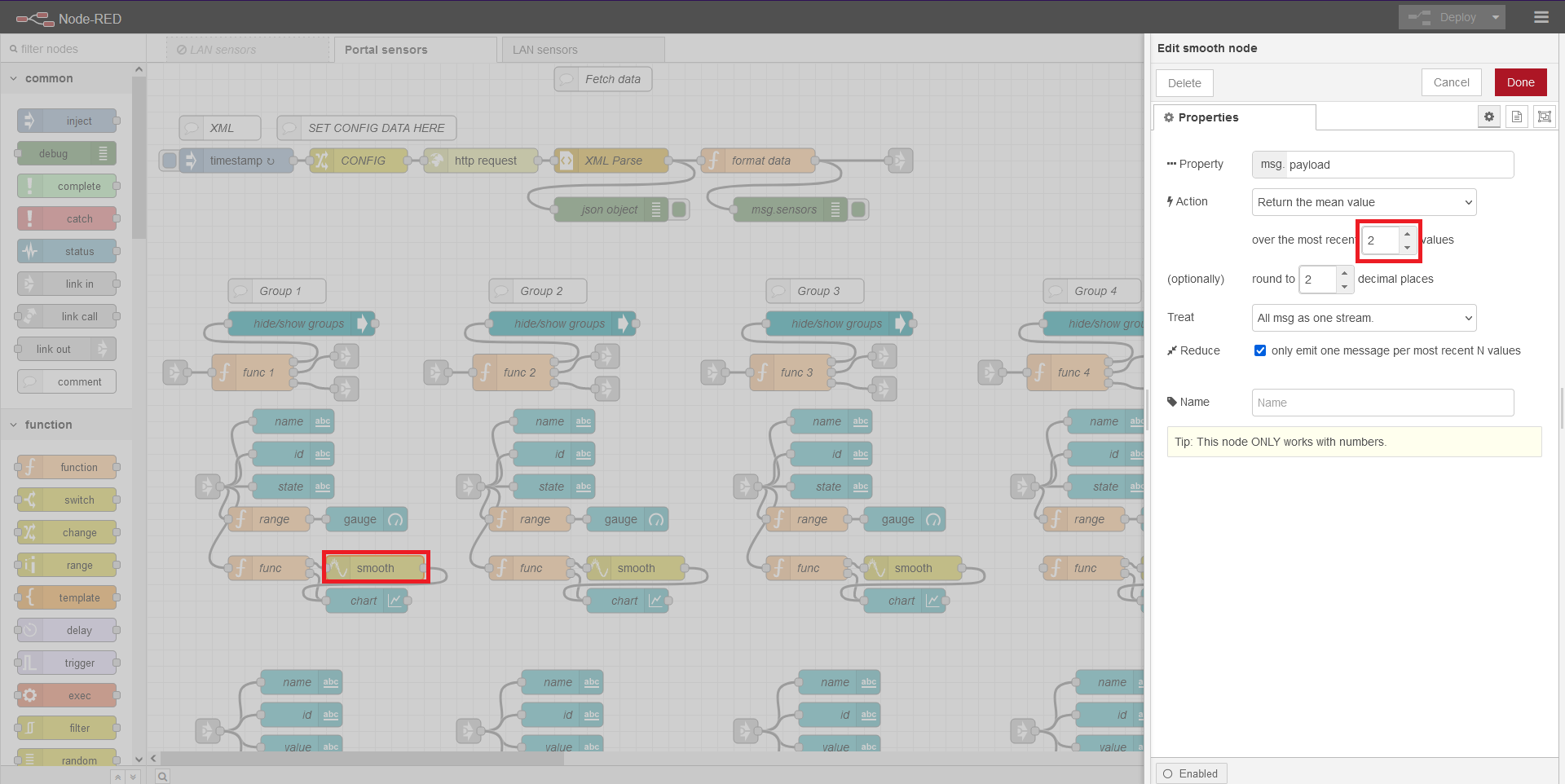

More data points on the graph

If you want your graphs to have a different data point density, you can change the action value in the Smooth Node. The default is 2 -> a new data point is added to the graph every 4 minutes.
