STE2 PLUS SMS-GW is a bundle package of STE2 PLUS monitoring unit and LTE version of SMS gateway for SMS and Call alerting.
- To STE2 PLUS can connect up to 15 external sensors to 2x RJ11 ports.

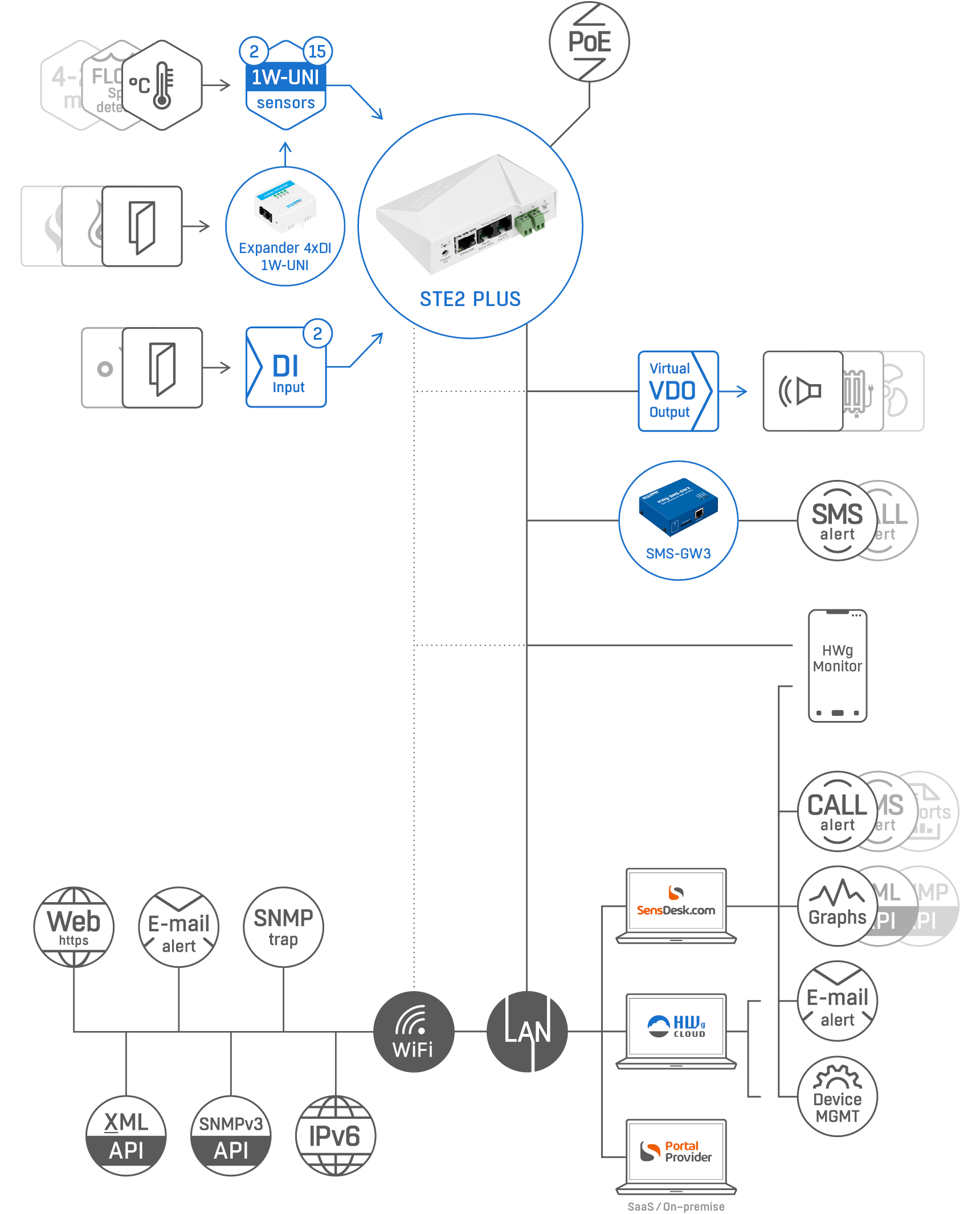

LAN & WiFi monitoring device STE2 PLUS is a professional product with HTTPS custom certificates, SNMPv3, SNMP Traps and IPv6. - The SMS-GW3 LTE is a central gateway that allows to HWg devices or SensDesk portals to send text messages (SMS) and make voice calls alerts.
This bundle package with 2 devices is a cost effective way to build a remote monitoring installation with SMS / Call alerts included even without the Portal. SMS GW device can be used by other HWg devices as central point to transmit SMS & Calls even from other HWg devices.
- STE2 PLUS thermometer included (LAN / WiFi)
- Temperature sensor (IP67 - 3m) included in the retail package
- SMS-GW3 LTE gateway included with external antenna
- 2x wall plug power adaptor (International = EU, UK, US)
- SMS/Calls GW for all HWg devices (RME)
- SMS/Calls GW for any SNMP based software (NAGIOS for example)
- Remote technical rooms monitoring
- SNMP / Email alerting with GW for SMS / Calls included.
- Remote monitoring of refrigerator or freezer (alert when refrigerator fails, logging of operating and storage conditions)
- Single SMS gateway for the entire network (other HWg devices) with an easy-to-use web-based configuration
STE2 PLUS sensors
Up to 15 external temperature sensor values can be connected to STE2 PLUS. Sensors can be daisy-chained from RJ11 port. One physical sensor can measure several values (°C + %RH = 2 sensor values). The maximum limit is 15 sensor values in total.
Compatible Sensors & Detectors
- Temperature sensors (Indoor / Outdoor / Cryo)
- Calibrated temperature sensors
- Relative Humidity sensors (Indoor / Outdoor)
- CO2 & VOC sensors
- Light sensor
- AC / DC Current sensors
- AC Voltage sensor (0-230V)
- 4-20 mA sensors (converter) for industrial probes
- Water flood detector (spot detection)
- WLD (Water Leak Detection) Relay with an external sensing cable
- Airflow detector
- Door contact detector
- PIR motion detector
- Gas leak detector
- Power presence (110/230V) detector
- Vibration detector
SMS-GW3 LTE

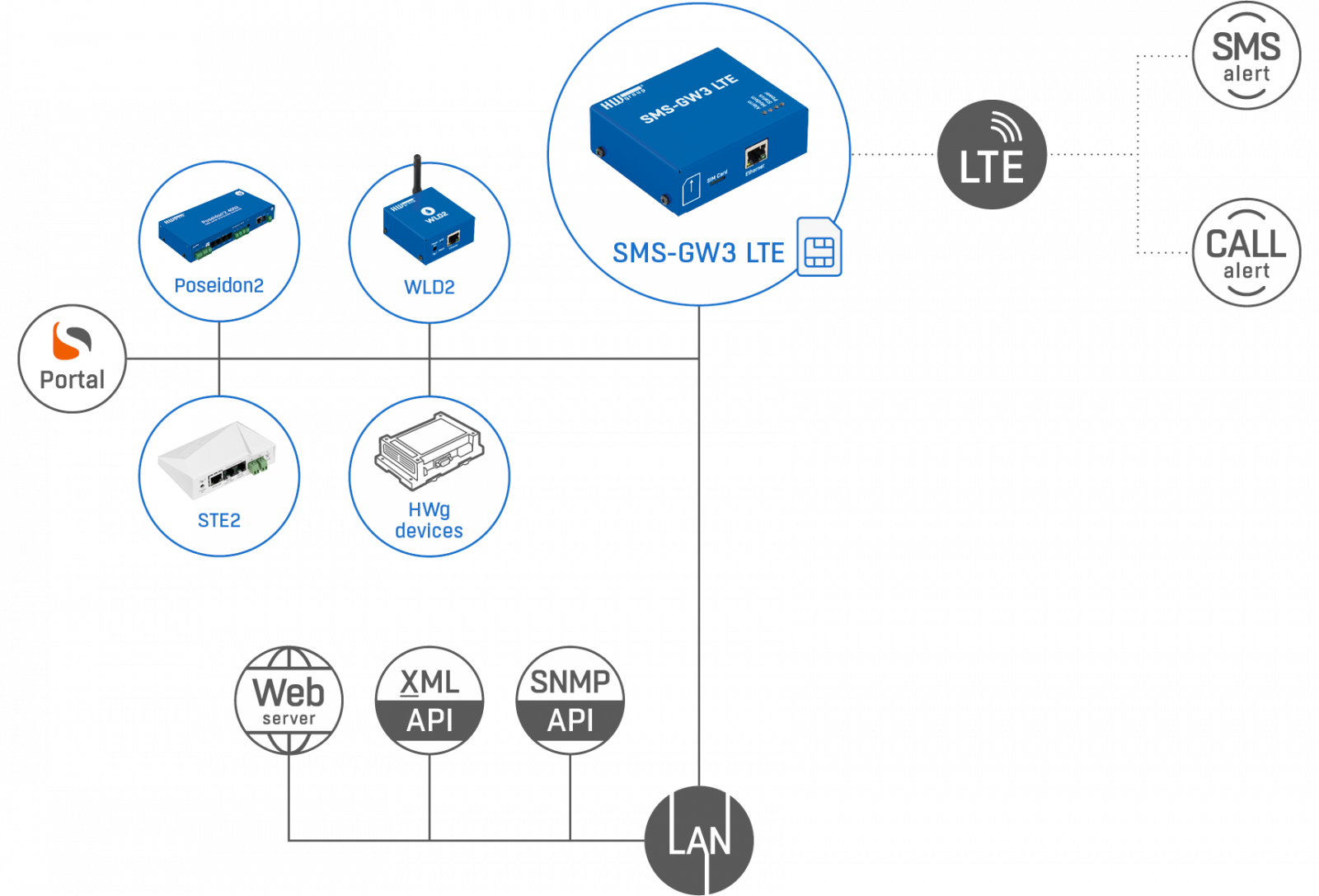

SMS-GW3 LTE is LTE gateway for sending SMS messages from several HWg devices.
It's part of the bundle with STE2 PLUS because of the "Device-to-GW" mode.
Customers with HWg monitoring devices are using one SMS-GW for alerting. Several HWg devices (on the same LAN) can connect to a single SMS-GW to send alarm alerts (SMS/voice calls) to different phone numbers. No extra software is needed, and it works over the local network using Box-2-Box (Peer-to-Peer) communication.
HWg Video Flyer about SMS-GW3 LTE device
HWg Video Flyer about STE2 PLUS device
STE2 Video manuals
To give you a closer look at how STE2 device works, we have prepared a new series of video manuals. In these videos, we will explore the STE2 r2 device in more detail.
>> View the whole STE2 R2 video manual series
>> Watch the STE2 playlist on HWg YouTube channel
